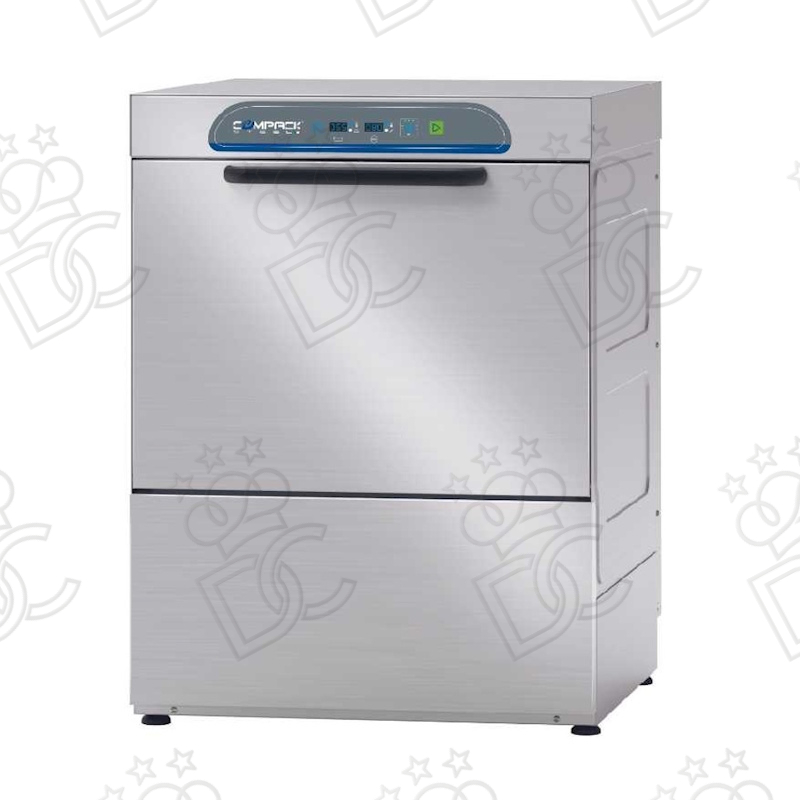

Front Loading Dishwasher - 50x50 Basket - DIGIT Control Panel
Dishwasher equipped with an automatic water softener that adjusts its regeneration intervals based on the incoming water hardness.
The control system, managed by a simple electronic board, allows you to set and monitor rinse and drain times and temperatures, as well as the related Thermostop functions, which are essential to ensure an excellent final result. Through the control panel, it is possible to select one of the 4 washing cycles and an automatic drain cycle (with drain pump installed), easily view the tank and boiler temperatures on the display, system Self-diagnosis messages, and the Scheduled Maintenance alert.
Self-cleaning cycle at the end of the day. Thanks to the Thermostop function, washing and rinsing start only once the desired temperature is reached. The double electric peristaltic detergent and rinse aid dispenser, installed as standard, ensures maximum results from every washing cycle.
Code: SM54E
Brand: Compack
| Construction features |
|---|
| Structure in AISI 311 stainless steel |
| Technical sheet | |
|---|---|
| Standard power supply: 230V+T - 50Hz | Dimensions cm 58.5x60x81.5h |
| No. of racks/hour - (Inlet water +55°C): Max 40 | Max glass height: 365mm |
| Max plate Ø: 395mm | Trays: GN 1/1 (Special rack required) |
| Tank heating element - Tank capacity: 2.6kW - 24lt | Boiler heating element - Boiler capacity: 2.5kW - 7.3lt |
| Pump power: 0.52kW / 0.7Hp | Total power / Current: 3.12kW / 16A |
| Recommended water supply: +55°C | Recommended water hardness: 7÷10 °f |
| Water consumption per cycle (with recommended pressure 2 BAR): 2.0lt Guaranteed | Adjustable detergent and rinse aid dispenser: Electric |
| Acquatech System rinse: yes | |
