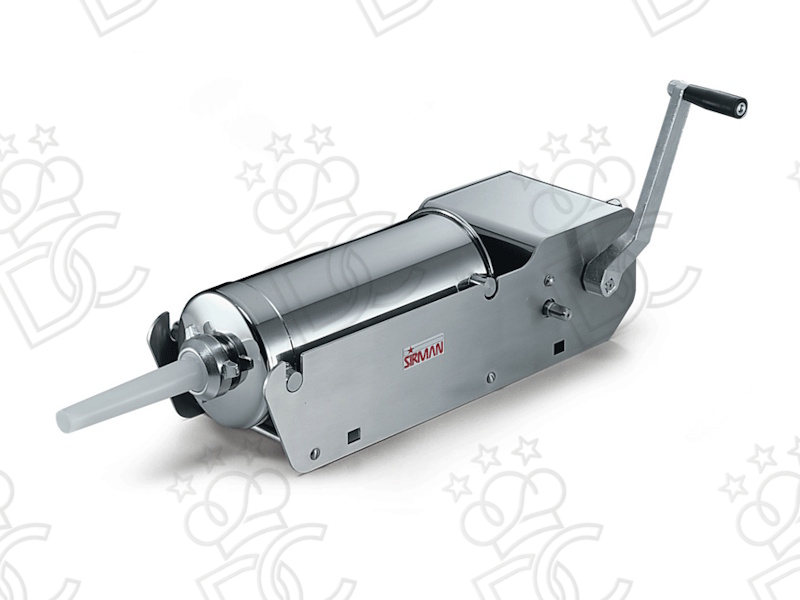

Manual horizontal sausage stuffer - 8 lt capacity - gear movement on 4 sealed bearings
Simple, compact manual sausage stuffer with high production capacity.
Gear movement on 4 sealed bearings.
Since it is designed for stuffing meat mixtures, its components have been carefully selected to ensure maximum hygiene.
The mixture cylinder complies with current hygiene and sanitary regulations; the piston is equipped with a special air vent.
€722,25
+ IVA
€881,15
VAT included
Code: IS8ARIES
Brand: Sirman
| Construction features | |
|---|---|
| Structure in AISI 304 stainless steel | Body and cylinder in AISI 304 stainless steel |
| Rounded cylinder with double welding on the bottom | Food-grade nylon piston with air release valve |
| Gearbox in galvanized steel | Gears in hardened and ground steel |
| Gear movement on 4 sealed bearings | Double speed reduction system |
| Technical sheet | |
|---|---|
| Cylinder length mm 370 | Cylinder diameter mm 165 |
| Piston stroke mm 420 | Dimensions mm 200x660x220h |
| Weight Kg 23 | |
| Standard equipment |
|---|
| 3 funnels in white food-grade nylon and fixing clamp ø int. mm 10-18-25 |
